LTC4162IUFD-L42#PBF - Analog Devices

Description: Battery Management 35V/3.2A Multi-Cell Lithium-Ion Step-Down Battery Charger with PowerPath and I2C Telemetry

Download LTC4162IUFD-L42#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

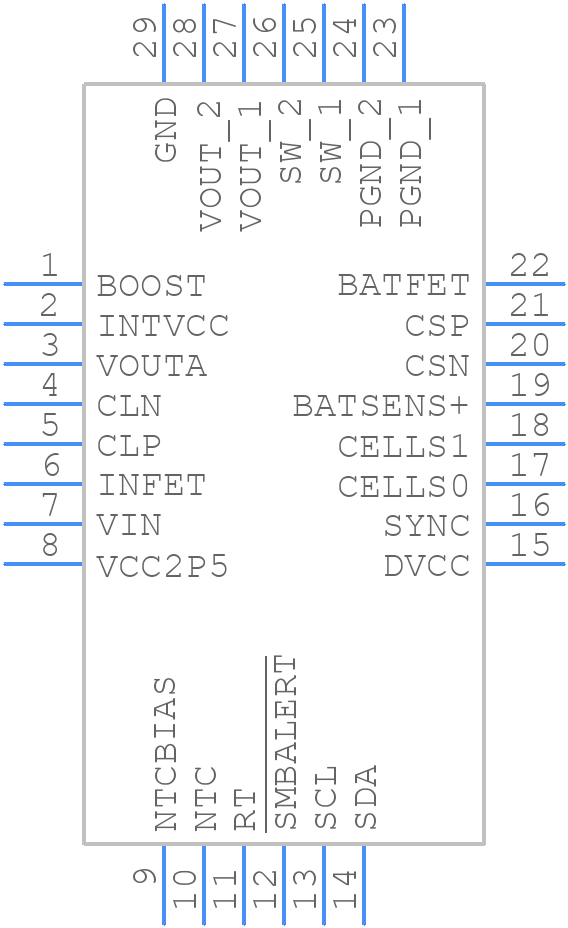

LTC4162IUFD-L42#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162IUFD-L42#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN- (4x5) LTC DWG
click to zoom
3D Models
LTC4162IUFD-L42#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN- (4x5) LTC DWG
click to zoom

LTC4162IUFD-L42#PBF Details

  • Manufacturer Part Number:

    LTC4162IUFD-L42#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162IUFD-L42#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the LTC4162IUFD-L42#PBF can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management.
  • The selection of input and output capacitors for the LTC4162IUFD-L42#PBF depends on the specific application requirements. The datasheet provides guidelines for capacitor selection, and the application note AN140 provides more detailed information on capacitor selection and layout considerations.
  • The maximum ambient temperature range for the LTC4162IUFD-L42#PBF is -40°C to 125°C, as specified in the datasheet. However, the device can operate up to 150°C with derating, as specified in the absolute maximum ratings section of the datasheet.
  • The LTC4162IUFD-L42#PBF has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN140 provides more detailed information on implementing overcurrent protection with the LTC4162IUFD-L42#PBF.
  • The typical efficiency of the LTC4162IUFD-L42#PBF is around 95% to 97%, depending on the input voltage, output voltage, and load current. The datasheet provides efficiency curves and tables for different operating conditions.
