LTC4162IUFD-SSTM#PBF - Analog Devices

Description: 35V/3.2A MULTI-CELL LITHIUM-ION

Download LTC4162IUFD-SSTM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

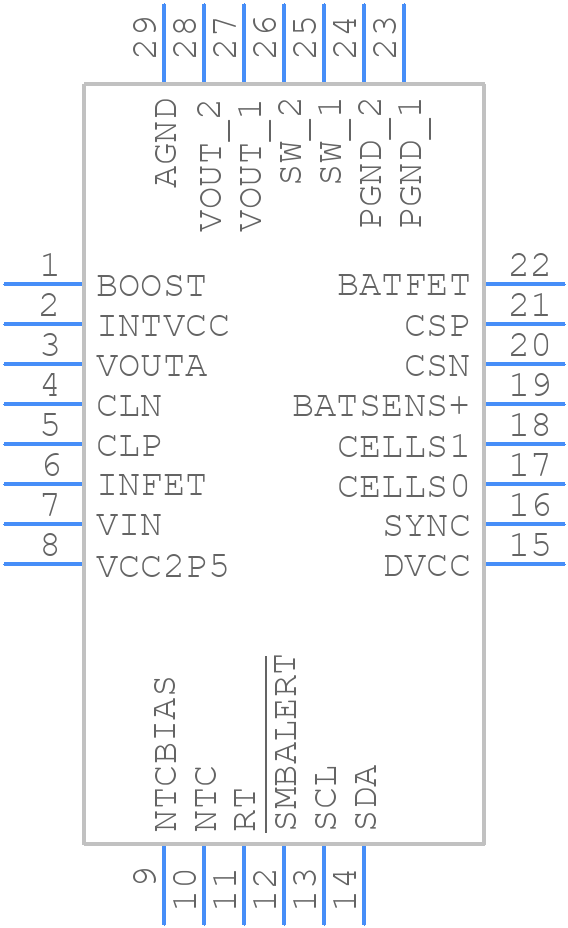

LTC4162IUFD-SSTM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162IUFD-SSTM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom
3D Models
LTC4162IUFD-SSTM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom

LTC4162IUFD-SSTM#PBF Details

  • Manufacturer Part Number:

    LTC4162IUFD-SSTM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162IUFD-SSTM#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4162IUFD-SSTM#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the LTC4162IUFD-SSTM#PBF is operating within its safe operating area (SOA), monitor the input voltage, output voltage, and output current. Ensure that the input voltage does not exceed 36V, the output voltage does not exceed 25V, and the output current does not exceed 2A. Also, ensure that the junction temperature does not exceed 125°C.
  • The recommended input capacitor value for the LTC4162IUFD-SSTM#PBF is 10uF to 22uF, with a voltage rating of at least 50V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended.
  • To troubleshoot issues with the LTC4162IUFD-SSTM#PBF, first check the input voltage and output voltage using an oscilloscope or multimeter. Verify that the input voltage is within the recommended range and that the output voltage is within the expected range. Check for any signs of overheating, such as excessive temperature or burning smells. Check the PCB layout and ensure that it is correct and that there are no signs of damage or wear.
  • The LTC4162IUFD-SSTM#PBF is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you provide adequate heat sinking and thermal management. You may also need to derate the device's performance and adjust the design accordingly.
