LTC4215IUFD-2#PBF - Analog Devices

Description: Hot Swap Controller 1-CH 15V N-Channel Positive Low Voltage 24-Pin QFN EP Tube

Download LTC4215IUFD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

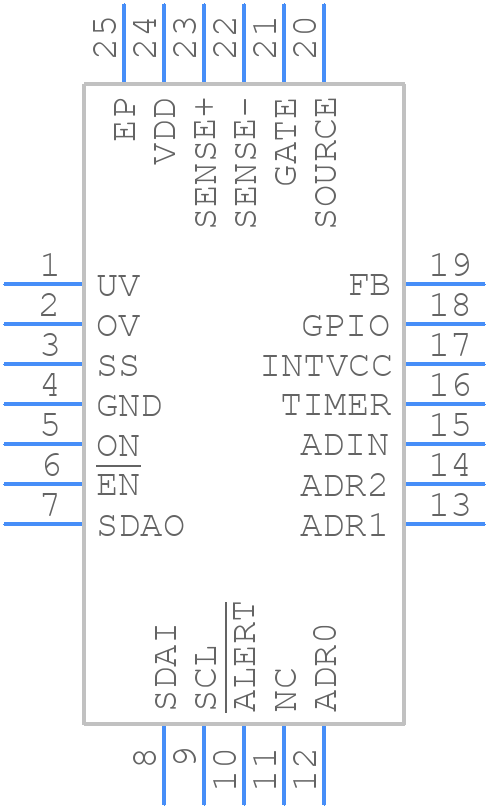

Symbol
LTC4215IUFD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4215IUFD-2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC4041IUFD#PBF
click to zoom
3D Models
LTC4215IUFD-2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC4041IUFD#PBF
click to zoom

LTC4215IUFD-2#PBF Details

  • Manufacturer Part Number:

    LTC4215IUFD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MO-220, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4215IUFD-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4215IUFD-2#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure the LTC4215IUFD-2#PBF is operating within its recommended operating conditions, verify that the input voltage is within the specified range (2.9V to 5.5V), the ambient temperature is within the specified range (-40°C to 125°C), and the device is not exposed to excessive moisture or humidity.
  • The LTC4215IUFD-2#PBF can handle a maximum current of 2A per channel, with a total current limit of 4A for both channels combined.
  • To troubleshoot issues with the LTC4215IUFD-2#PBF, start by verifying the input voltage and current, checking for any signs of overheating, and ensuring that the device is properly soldered and connected. Also, check the datasheet for any specific troubleshooting guidelines and consider using a thermal camera to detect any hotspots.
  • Yes, the LTC4215IUFD-2#PBF is suitable for use in high-reliability or safety-critical applications, as it is designed to meet the requirements of automotive and industrial applications. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4215IUFD-2#PBF Overview

Use the download button to access the LTC4215IUFD-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
