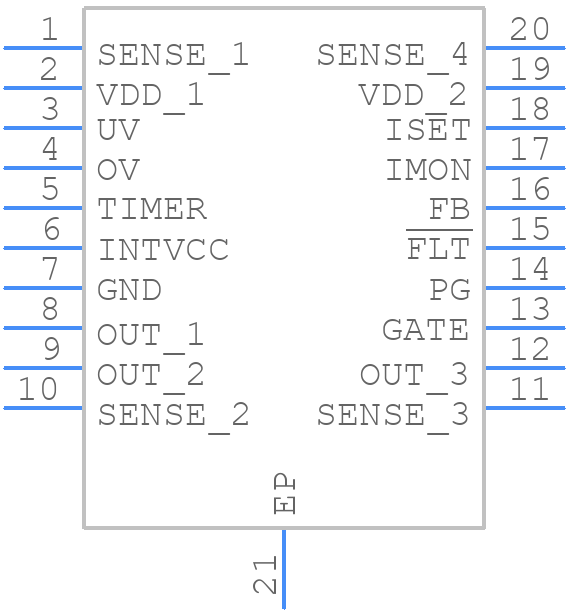

LTC4217CFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4217CFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC TSSOP
click to zoom
3D Models
LTC4217CFE#PBF - Analog Devices - 3D model - Small Outline Packages - LTC TSSOP
click to zoom

LTC4217CFE#PBF Details

  • Manufacturer Part Number:

    LTC4217CFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CA)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC4217CFE#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4217CFE#PBF is -40°C to 85°C.
  • To ensure reliable hot swap operation, make sure to follow the recommended PCB layout and component placement guidelines, and use a suitable hot swap controller and power supply. Additionally, ensure that the input voltage and current are within the specified limits, and that the device is properly configured for hot swap operation.
  • Yes, the LTC4217CFE#PBF is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of demanding applications such as data centers, telecommunications, and industrial control systems.
  • To troubleshoot issues with the LTC4217CFE#PBF, start by reviewing the datasheet and application notes to ensure that the device is properly configured and used within its specified operating conditions. Check for proper power supply and input voltage, and verify that the device is properly connected to the load and other components. Use oscilloscopes and other diagnostic tools to measure voltage and current waveforms, and consult with Analog Devices' technical support team if necessary.
  • Yes, the LTC4217CFE#PBF is compatible with lead-free soldering processes. It is RoHS-compliant and meets the requirements of the European Union's Restriction of Hazardous Substances (RoHS) directive.
