LTC4222IG#PBF - Analog Devices

Description: Hot Swap Voltage Controllers 2x Hot Swap Cntr w/ I2C Compatible Mon i -40°C ~ 85°C,36-SSOP,29V

Download LTC4222IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

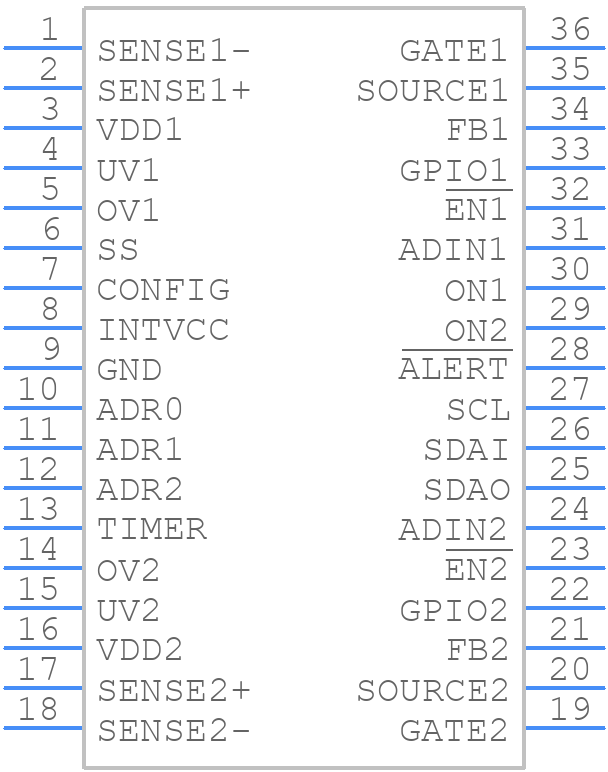

LTC4222IG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4222IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 36-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC4222IG#PBF - Analog Devices - 3D model - Small Outline Packages - G Package 36-Lead Plastic SSOP (5.3mm)
click to zoom

LTC4222IG#PBF Details

  • Manufacturer Part Number:

    LTC4222IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM, LEAD FREE, PLASTIC, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    29 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm
