LTC4226IUD-2#TRPBF - Analog Devices

Description: Hot Swap Voltage Controllers 4.5V to 44V Dual Hot Swap Controller, Auto-Retry

Download LTC4226IUD-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

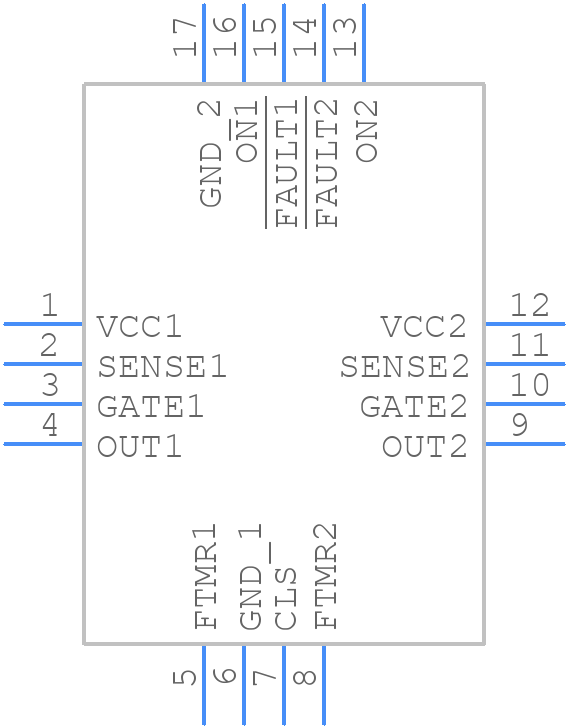

LTC4226IUD-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4226IUD-2#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC4226IUD-2#TRPBF
click to zoom
3D Models
LTC4226IUD-2#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC4226IUD-2#TRPBF
click to zoom

LTC4226IUD-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4226IUD-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1700

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    44 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4226IUD-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4226IUD-2#TRPBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the LTC4226IUD-2#TRPBF is operating within its recommended operating conditions, verify that the input voltage is within the specified range (2.9V to 5.5V), the ambient temperature is within the specified range (-40°C to 125°C), and the device is not exposed to excessive moisture or humidity.
  • The LTC4226IUD-2#TRPBF can handle a maximum current of 2A per channel, with a total maximum current of 4A for both channels combined.
  • To troubleshoot issues with the LTC4226IUD-2#TRPBF, start by verifying the input voltage and current, checking for proper PCB layout and thermal management, and ensuring that the device is not exposed to excessive noise or EMI. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance.
  • Yes, the LTC4226IUD-2#TRPBF is compatible with lead-free soldering. The device is RoHS compliant and can be soldered using lead-free soldering techniques.
