LTC4228IUFD-1#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4228IUFD-1#PBF - Hot Swap Controller, 3V to 18V supply, QFN-28

Download LTC4228IUFD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

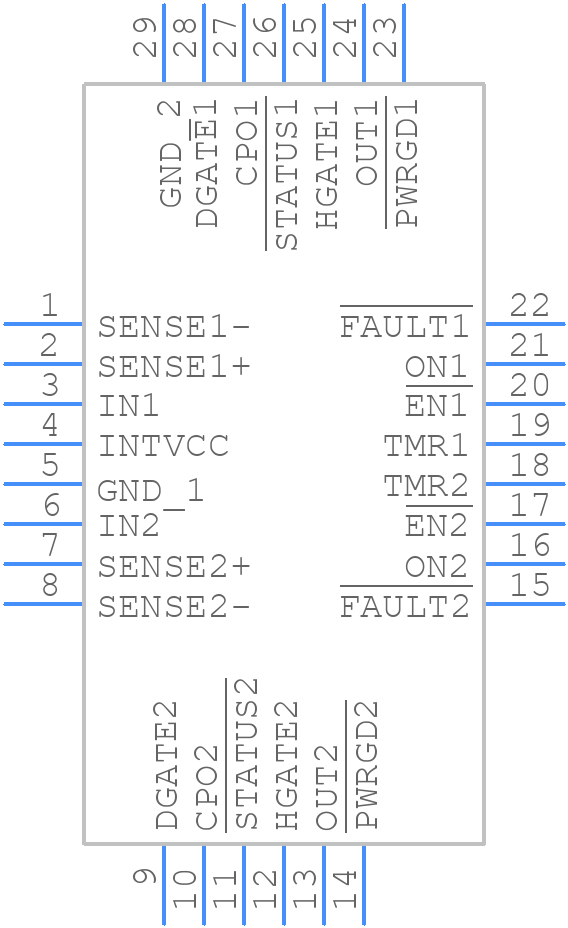

LTC4228IUFD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4228IUFD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom
3D Models
LTC4228IUFD-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom

LTC4228IUFD-1#PBF Details

  • Manufacturer Part Number:

    LTC4228IUFD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4228IUFD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4228IUFD-1#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the LTC4228IUFD-1#PBF is operating within its recommended operating conditions, monitor the input voltage, output voltage, and operating temperature. The device should be operated within the recommended voltage range of 2.9V to 5.5V, and the junction temperature should be kept below 125°C. Additionally, ensure that the device is not exposed to excessive moisture or humidity.
  • The recommended input capacitor value for the LTC4228IUFD-1#PBF is 1uF to 10uF, with a voltage rating of at least 6.3V. A ceramic capacitor with an X5R or X7R dielectric is recommended. The input capacitor should be placed as close as possible to the VIN pin of the device.
  • To troubleshoot issues with the LTC4228IUFD-1#PBF, start by checking the input voltage and output voltage using an oscilloscope or multimeter. Verify that the device is operating within its recommended operating conditions. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Also, check the PCB layout and ensure that it meets the recommended layout guidelines.
  • Yes, the LTC4228IUFD-1#PBF is compatible with lead-free soldering processes. The device is RoHS compliant and can be soldered using lead-free soldering techniques. However, it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4228IUFD-1#PBF Overview

Use the download button to access the LTC4228IUFD-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
