LTC4236CUFD-2#PBF - Analog Devices

Description: Hot Swap Controller 1-CH 18V N-Channel Positive Voltage 28-Pin QFN EP Tube

Download LTC4236CUFD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

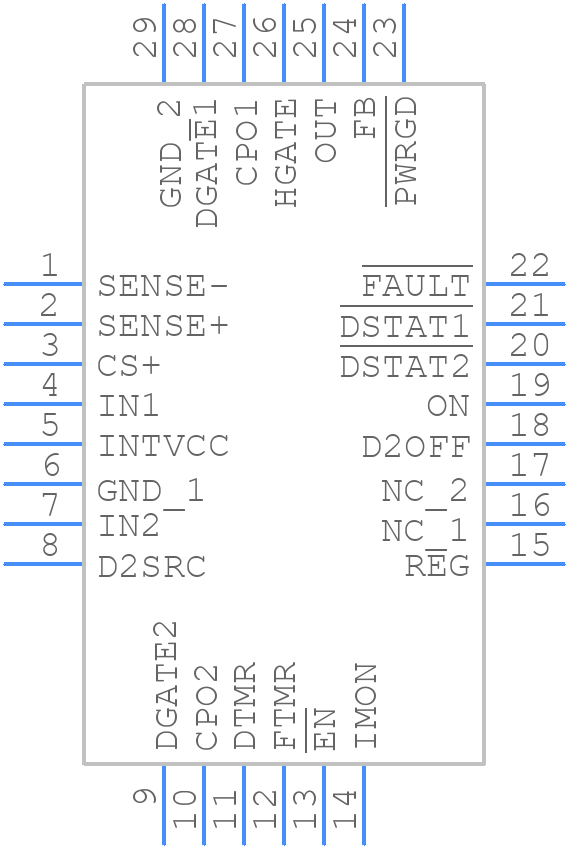

Symbol
LTC4236CUFD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4236CUFD-2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom
3D Models
LTC4236CUFD-2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom

LTC4236CUFD-2#PBF Details

  • Manufacturer Part Number:

    LTC4236CUFD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4236CUFD-2#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4236CUFD-2#PBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including keeping the device away from heat sources, using thermal vias, and providing adequate copper area for heat dissipation.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, and check for proper power-up sequencing, input voltage and current, and output loading conditions. Also, verify that the device is properly configured and that the fault detection and protection features are not triggered.
  • To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use shielding and filtering where necessary, and ensure that the device is properly decoupled and bypassed. Additionally, comply with relevant regulatory standards and guidelines for EMI and EMC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4236CUFD-2#PBF Overview

Use the download button to access the LTC4236CUFD-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
