LTC4238CUFD#PBF - Analog Devices

Description: Hot Swap Voltage Controllers HighVoltage, HighPower HotSwap Controlle

Download LTC4238CUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

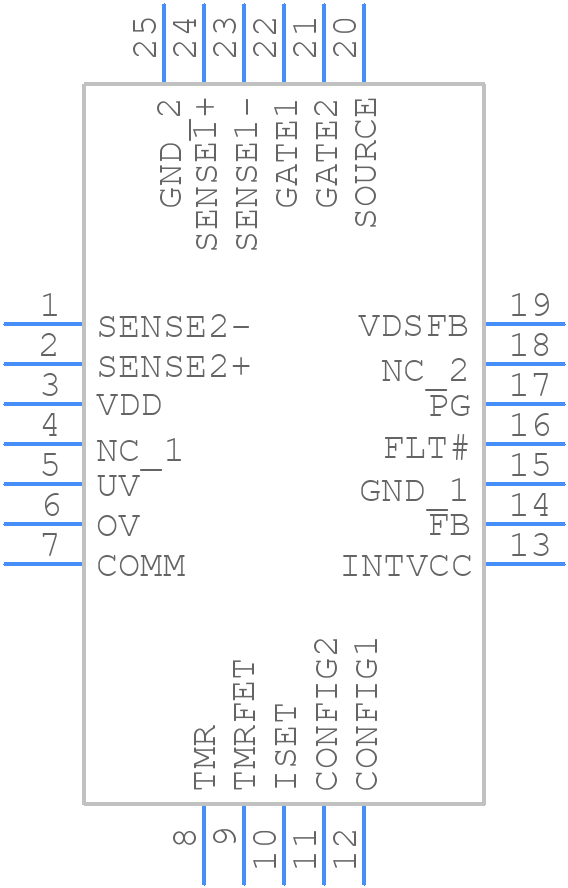

LTC4238CUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4238CUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead (4mm × 5mm) Plastic QFN
click to zoom
3D Models
LTC4238CUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead (4mm × 5mm) Plastic QFN
click to zoom

LTC4238CUFD#PBF Details

  • Manufacturer Part Number:

    LTC4238CUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4238CUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4238CUFD#PBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, including setting the correct voltage on the VCC pin and configuring the EN pin.
  • For optimal performance, follow the recommended PCB layout and design guidelines in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane.
  • To troubleshoot issues, start by verifying the power supply and input voltage, checking for proper configuration and layout, and using oscilloscope measurements to identify any anomalies or noise sources.
  • Yes, the LTC4238CUFD#PBF is designed for high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Analog Devices Inc. for specific requirements and certifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4238CUFD#PBF Overview

Use the download button to access the LTC4238CUFD#PBF schematic symbol, PCB footprint, and 3D model.
