LTC4238HUFD#PBF - Analog Devices

Description: Hot Swap Voltage Controllers HighVoltage, HighPower HotSwap Controlle

Download LTC4238HUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

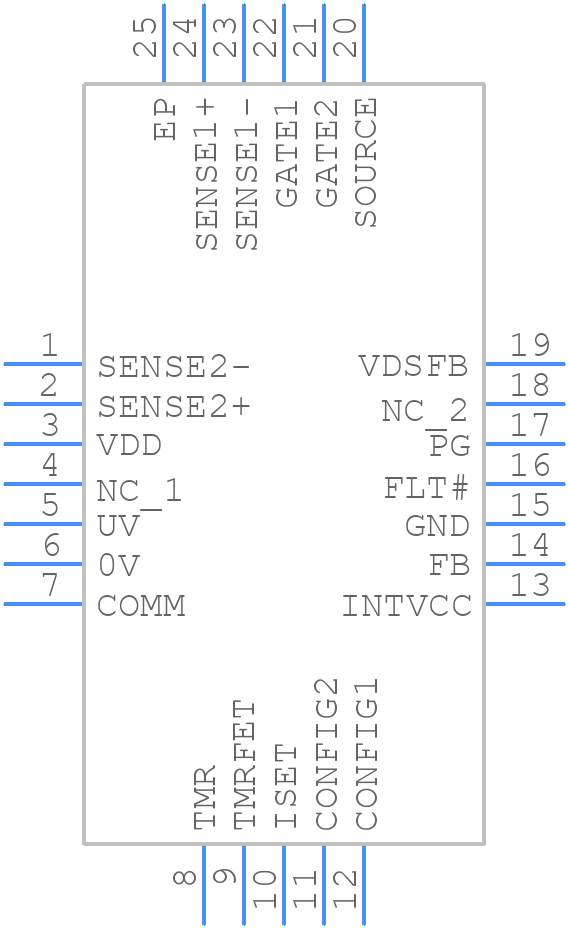

LTC4238HUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4238HUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LTC4238HUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)
click to zoom

LTC4238HUFD#PBF Details

  • Manufacturer Part Number:

    LTC4238HUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4238HUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4238HUFD#PBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, including setting the correct input voltage, enabling the device, and configuring the output voltage and current limits.
  • For optimal performance, follow the recommended PCB layout and design guidelines in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, which provides guidance on identifying and resolving common problems, including output voltage errors, overcurrent conditions, and thermal shutdowns.
  • The recommended input and output capacitors for the LTC4238HUFD#PBF are ceramic capacitors with a minimum capacitance of 10uF and a maximum ESR of 1 ohm, as specified in the datasheet.
