LTC4252-2IMS#PBF - Analog Devices

Description: Linear Technology LTC4252-2IMS#PBF, Hot Swap Controller, Negative Voltage, -48 V, 10-Pin, MSOP

Download LTC4252-2IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

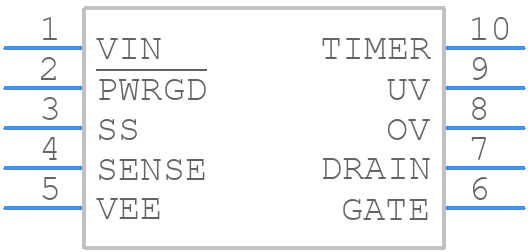

LTC4252-2IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4252-2IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS 10 MSOP
click to zoom
3D Models
LTC4252-2IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS 10 MSOP
click to zoom

LTC4252-2IMS#PBF Details

  • Manufacturer Part Number:

    LTC4252-2IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    14.5 V

  • Supply Voltage-Min (Vsup):

    11.5 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4252-2IMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4252-2IMS#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The LTC4252-2IMS#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirements are not critical, but it's recommended to power the device after the input voltage has stabilized.
  • The LTC4252-2IMS#PBF is a hot swap controller and does not have a data transfer rate limitation. However, the maximum data transfer rate of the system will depend on the specific application and the devices connected to the bus.
  • To troubleshoot issues with the LTC4252-2IMS#PBF, start by checking the power supply voltage and ensuring it's within the recommended range. Verify that the input voltage is stable and the device is properly configured. Check the fault pin (FAULT) to see if it's being asserted, indicating an overcurrent or undervoltage condition. Use an oscilloscope to monitor the voltage and current waveforms to identify any anomalies.
  • The LTC4252-2IMS#PBF is rated for operation up to 85°C. However, the device's thermal performance will depend on the specific application and the PCB design. Ensure good thermal conduction by using a heat sink or a thermal pad, and follow proper thermal design guidelines to minimize thermal resistance.
