LTC4260IUH - Analog Devices

Description: Hot Swap Controller, Monitor 1 Channel General Purpose 32-QFN (5x5)

Download LTC4260IUH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

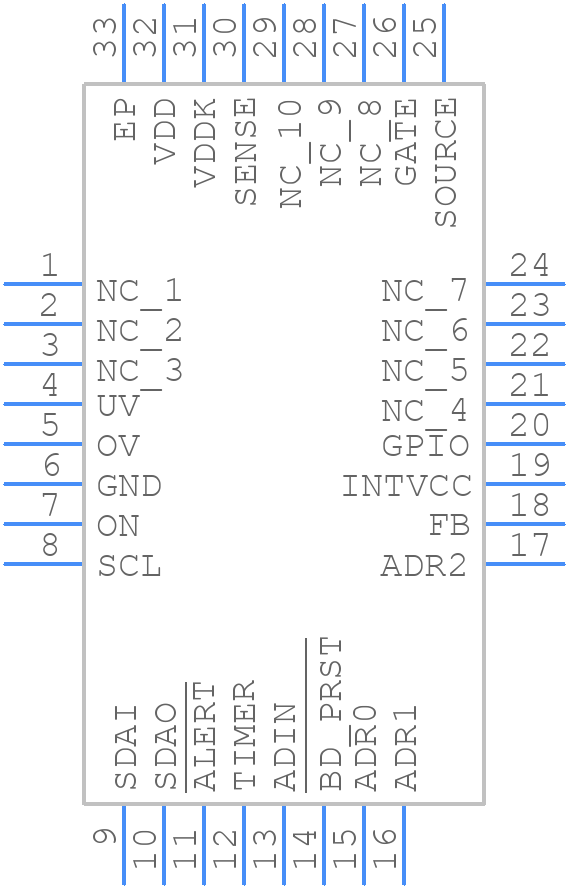

LTC4260IUH - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4260IUH - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC4260IUH - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC4260IUH Details

  • Manufacturer Part Number:

    LTC4260IUH

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, PLASTIC, QFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    8.5 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4260IUH Frequently Asked Questions (FAQs)

  • The LTC4260IUH can be connected in parallel to support up to 8 hot swap controllers, allowing for a total of 16 channels of hot swap control.
  • To ensure that the power FET turns off during a fault condition, connect the FAULT pin to the gate of the power FET and set the fault response time using the FLT timer pin. This will guarantee that the power FET is turned off in case of an overcurrent or overvoltage fault.
  • To minimize EMI and noise, place the LTC4260IUH close to the power FET and keep the high-current paths short and wide. Use a solid ground plane and separate the analog and digital grounds. Also, use a shielded inductor and place it away from sensitive analog circuits.
  • The overcurrent threshold can be adjusted by selecting the appropriate sense resistor value (RS) and the response time can be adjusted by selecting the appropriate capacitor value (CT) for the FLT timer pin. Refer to the datasheet for the calculation formulas and examples.
  • Yes, the LTC4260IUH can be used for hot swapping batteries or other energy storage devices. However, additional circuitry may be required to handle the unique characteristics of batteries, such as voltage and current monitoring, and charging/discharging control.
