LTC4263CDE-1#PBF - Analog Devices

Description: Power Switch ICs - POE / LAN Hi Pwr 1x PSE Cntr w/ Int Switch

Download LTC4263CDE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

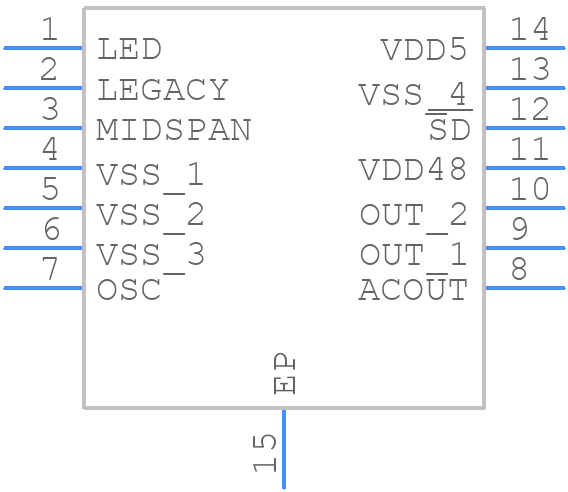

LTC4263CDE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4263CDE-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC4263CDE-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC4263CDE-1#PBF Details

  • Manufacturer Part Number:

    LTC4263CDE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1708

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

LTC4263CDE-1#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other, and use a common mode choke to filter the input voltage.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking airflow to the device. Also, ensure the device is not exposed to extreme temperatures during storage or handling.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible.
  • Check the input voltage, output load, and PCB layout for any issues. Use an oscilloscope to check for voltage ripple or oscillations. Verify that the device is properly soldered and that there are no shorts or opens on the PCB.
  • Yes, the LTC4263CDE-1#PBF is suitable for high-reliability and safety-critical applications. However, it is essential to follow proper design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4263CDE-1#PBF Overview

Use the download button to access the LTC4263CDE-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
