LTC4267CGN-3#PBF - Analog Devices

Description: Power over Ethernet IEEE 802.3af PD Interface with Integrated 300kHz Switching Regulator

Download LTC4267CGN-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

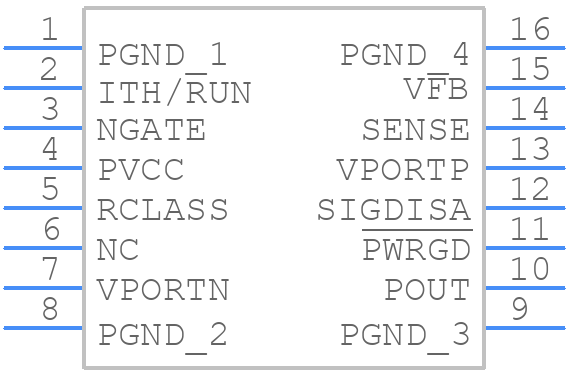

Symbol
LTC4267CGN-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4267CGN-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-16 -
click to zoom
3D Models
LTC4267CGN-3#PBF - Analog Devices - 3D model - Small Outline Packages - SSOP-16 -
click to zoom

LTC4267CGN-3#PBF Details

  • Manufacturer Part Number:

    LTC4267CGN-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC4267CGN-3#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other, and use a common mode choke to filter the input voltage.
  • Mount the device on a heat sink with a thermal conductivity of at least 1°C/W, and ensure good airflow around the device. Keep the ambient temperature below 85°C and avoid overheating the device.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, with a voltage rating of at least 2x the input voltage. The capacitor should be placed as close to the VIN pin as possible.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Verify the input voltage is within the recommended range, and check for proper thermal management and PCB layout.
  • Yes, the LTC4267CGN-3#PBF is qualified for automotive and high-reliability applications, but additional testing and validation may be required. Consult the datasheet and application notes for specific requirements and guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4267CGN-3#PBF Overview

Use the download button to access the LTC4267CGN-3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
