LTC4267IDHC#PBF - Analog Devices

Description: Power over Ethernet IEEE 802.3af PD Interface with Integrated Switching Regulator

Download LTC4267IDHC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

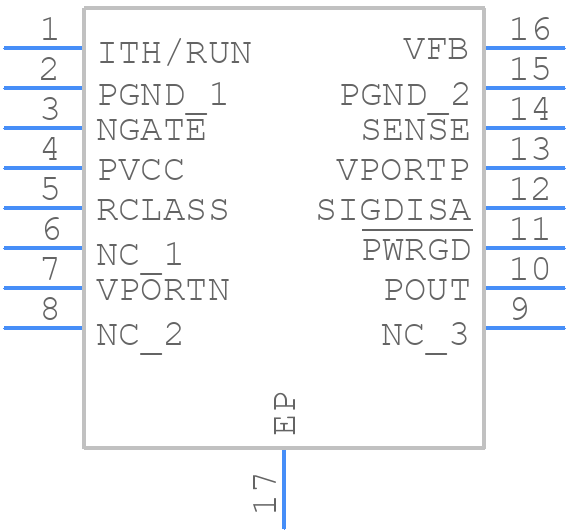

LTC4267IDHC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4267IDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC Package 16-Lead (5mm × 5mm) Plastic DFN
click to zoom
3D Models
LTC4267IDHC#PBF - Analog Devices - 3D model - Small Outline No-lead - DHC Package 16-Lead (5mm × 5mm) Plastic DFN
click to zoom

LTC4267IDHC#PBF Details

  • Manufacturer Part Number:

    LTC4267IDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
