LTC4267IGN#PBF - Analog Devices

Description: Power over Ethernet IEEE 802.3af PD Interface with Integrated Switching Regulator

Download LTC4267IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

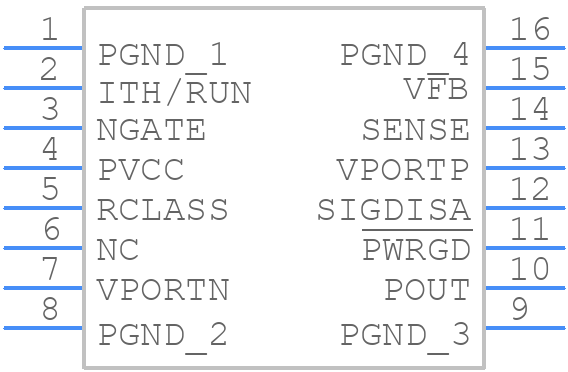

LTC4267IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4267IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-16 Narrow
click to zoom
3D Models
LTC4267IGN#PBF - Analog Devices - 3D model - Small Outline Packages - SSOP-16 Narrow
click to zoom

LTC4267IGN#PBF Details

  • Manufacturer Part Number:

    LTC4267IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

LTC4267IGN#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Use a thermal pad or thermal interface material to improve heat transfer between the IC and the PCB. Ensure good airflow around the IC, and consider using a heat sink if the device will be operating at high currents or in high-temperature environments.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 2x the maximum input voltage.
  • The output voltage can be adjusted by changing the ratio of the resistors R1 and R2 in the feedback network. Use the formula VOUT = 0.8V x (1 + R2/R1) to calculate the desired resistor values.
  • The maximum input voltage is 36V, but the device can withstand up to 40V for short periods of time. However, operating the device at voltages above 36V for extended periods may reduce its reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4267IGN#PBF Overview

Use the download button to access the LTC4267IGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
