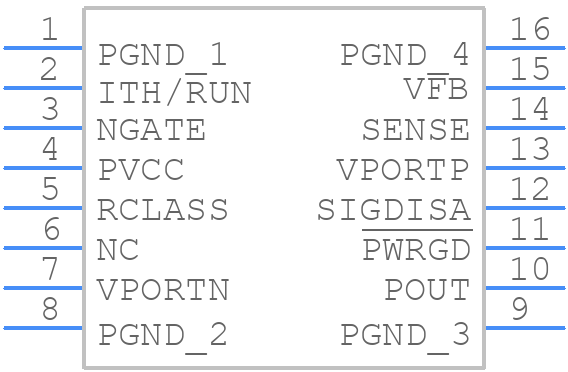

LTC4267IGN#TRPBF - Analog Devices

LTC4267IGN#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the LTC4267IGN to ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines. Avoid routing sensitive analog signals near the switching node.
• How do I choose the right inductor value for my application?
  The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet. You can also use the inductor selection guide provided by Analog Devices or consult with an applications engineer.
• What is the maximum ambient temperature range for the LTC4267IGN?
  The maximum ambient temperature range for the LTC4267IGN is -40°C to 125°C. However, the device can operate up to 150°C with derating. Consult the datasheet for more information on thermal derating.
• Can I use the LTC4267IGN in a high-reliability or automotive application?
  Yes, the LTC4267IGN is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured with automotive-grade processes. However, additional testing and validation may be required for specific applications.
• How do I troubleshoot issues with the LTC4267IGN, such as oscillations or instability?
  Start by checking the PCB layout, component values, and soldering quality. Verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the switching node and output voltage. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' technical support if needed.
