LTC4282AUH#PBF - Analog Devices

Description: High Current Hot Swap Controller with I2C Compatible Monitoring

Download LTC4282AUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

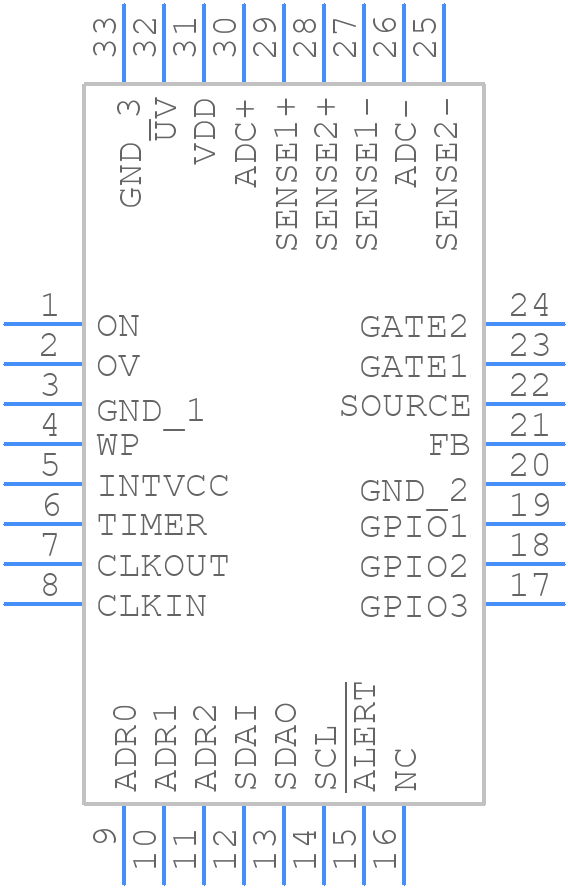

Symbol
LTC4282AUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4282AUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC4282AUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC4282AUH#PBF Details

  • Manufacturer Part Number:

    LTC4282AUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.28V

  • Width:

    5 mm

LTC4282AUH#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling. Use a common mode choke or a ferrite bead to filter the input power lines.
  • Monitor the junction temperature (TJ) and ensure it stays below the maximum rating of 125°C. Calculate the power dissipation (PD) using the formula PD = (VIN - VOUT) x IOUT. Ensure the PD is within the SOA curve provided in the datasheet.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin to minimize inductance and ensure stable operation.
  • Use the datasheet's feedback network design equations to calculate the optimal resistor and capacitor values. Ensure the feedback network is properly compensated to prevent oscillations and ensure stability.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 47uF is recommended. The capacitor should be placed close to the VOUT pin to minimize inductance and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4282AUH#PBF Overview

Use the download button to access the LTC4282AUH#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
