LTC4283HUHF#PBF - Analog Devices

Description: Negative Voltage Hot Swap Controller with Energy Monitor

Download LTC4283HUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

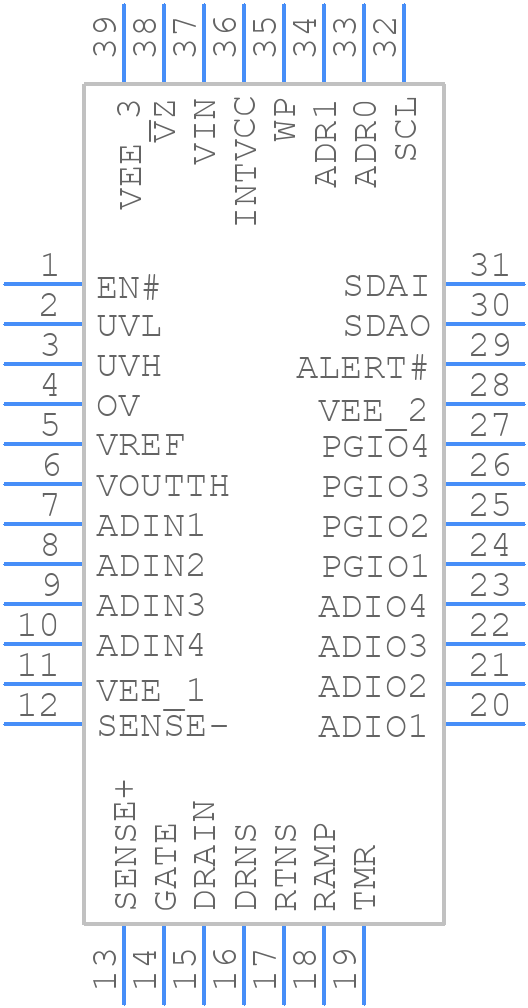

Symbol
LTC4283HUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4283HUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)*
click to zoom
3D Models
LTC4283HUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 38-Lead Plastic QFN (5mm × 7mm)*
click to zoom

LTC4283HUHF#PBF Details

  • Manufacturer Part Number:

    LTC4283HUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.75 mm

  • Supply Voltage-Max (Vsup):

    5.35 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5.05 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4283HUHF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4283HUHF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the VCC and GND pins to minimize noise coupling.
  • To ensure proper power-up and power-down of the LTC4283HUHF, it's recommended to follow a controlled power-up sequence, where the input voltage is applied before the enable pin is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed. This helps prevent unwanted current surges and ensures reliable operation.
  • The maximum allowed voltage on the EN pin of the LTC4283HUHF is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage limiter or a voltage divider to ensure the EN pin voltage remains within the specified range.
  • Yes, the LTC4283HUHF is suitable for hot-swap applications. It has built-in overcurrent protection and undervoltage lockout, which helps prevent damage during hot-swap events. However, it's essential to follow proper design guidelines and ensure the device is properly bypassed and filtered to prevent voltage transients during hot-swap.
  • The output voltage of the LTC4283HUHF can be calculated using the formula: VOUT = (VIN x R1) / (R1 + R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the values of R1 and R2.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4283HUHF#PBF Overview

Use the download button to access the LTC4283HUHF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC42, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
