LTC4284IUHG#PBF - Analog Devices

Description: High Power Negative Voltage Hot Swap Controller with Energy Monitor

Download LTC4284IUHG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

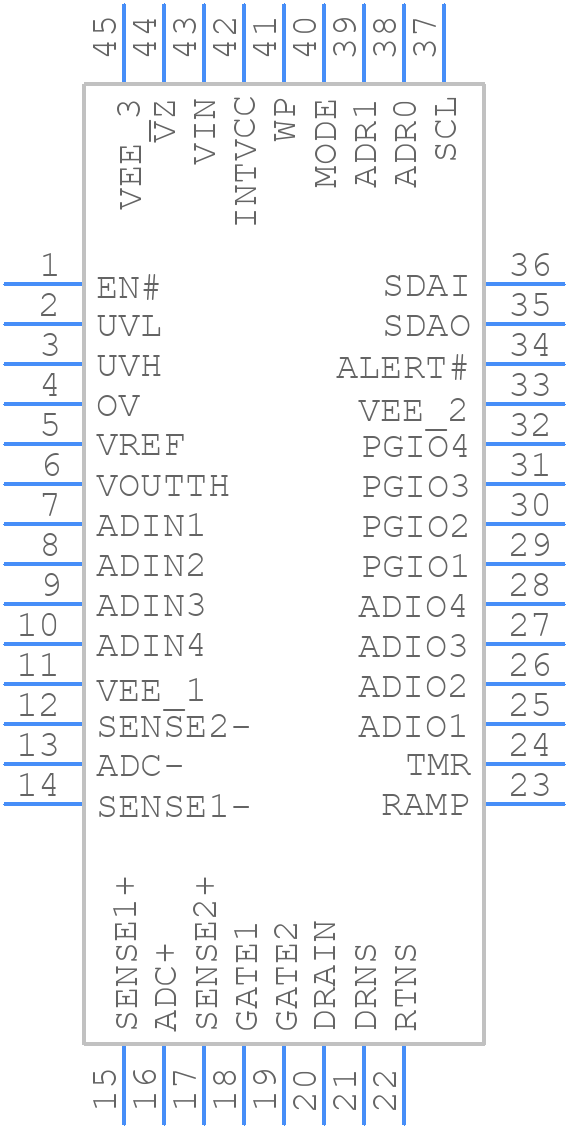

Symbol
LTC4284IUHG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4284IUHG#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHG Package 44-Lead Plastic QFN (5mm × 8mm)
click to zoom
3D Models
LTC4284IUHG#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHG Package 44-Lead Plastic QFN (5mm × 8mm)
click to zoom

LTC4284IUHG#PBF Details

  • Manufacturer Part Number:

    LTC4284IUHG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1581

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PQCC-N44

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.2X.32,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    11.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4284IUHG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4284IUHG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • To ensure the LTC4284IUHG is operating within its safe operating area (SOA), you should monitor the device's junction temperature, input voltage, output current, and power dissipation. Make sure these parameters are within the recommended limits specified in the datasheet. You can use thermal modeling and simulation tools to estimate the junction temperature and ensure it's within the safe operating range.
  • The recommended input capacitor type for the LTC4284IUHG is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor helps to filter out high-frequency noise and ensure stable operation of the device. The exact value of the capacitor may vary depending on the specific application and input voltage range.
  • To troubleshoot issues with the LTC4284IUHG, start by checking the input voltage, output voltage, and output current to ensure they are within the recommended specifications. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to check for noise or oscillations on the output voltage. If the issue persists, try replacing the device or checking for any external component failures.
  • The LTC4284IUHG is rated for operation up to 125°C, but it's recommended to derate the device's power dissipation and output current at higher temperatures to ensure reliable operation. You should also consider the temperature rating of the surrounding components and the PCB material to ensure the entire system can operate safely in the high-temperature environment.
