LTC4301CMS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4301CMS8#PBF - Hot Swap Controller, 2.7V to 5.5V supply, MSOP-8

Download LTC4301CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

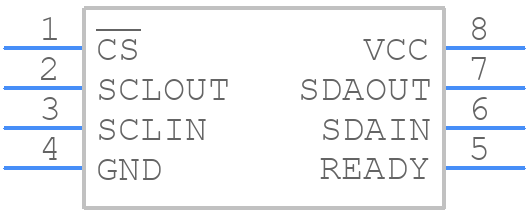

LTC4301CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4301CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic- MSOP
click to zoom
3D Models
LTC4301CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic- MSOP
click to zoom

LTC4301CMS8#PBF Details

  • Manufacturer Part Number:

    LTC4301CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.12

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4301CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4301CMS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper power supply, use a high-quality, low-noise power supply with a voltage regulator to regulate the input voltage. Decouple the power supply lines with 0.1uF and 10uF capacitors, and use a 10kΩ resistor in series with the input capacitor to prevent oscillations.
  • The LTC4301CMS8 supports clock frequencies up to 100MHz. However, the maximum frequency may vary depending on the specific application and the quality of the clock signal.
  • To troubleshoot issues with the LTC4301CMS8, start by checking the power supply and clock signal. Verify that the input voltage and clock frequency are within the recommended specifications. Use an oscilloscope to check the signal integrity and look for signs of noise or oscillations. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the LTC4301CMS8 is designed to support hot-swapping. However, it's essential to follow proper hot-swap procedures to prevent damage to the device or the system. Ensure that the power supply is properly sequenced, and the clock signal is stable before connecting or disconnecting the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4301CMS8#PBF Overview

Use the download button to access the LTC4301CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
