LTC4301CMS8#TRPBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters Supply Independent I2C Bus Buffer

Download LTC4301CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

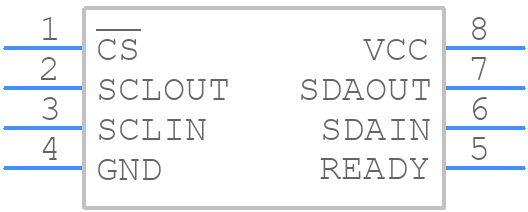

LTC4301CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4301CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC4301CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC4301CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC4301CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.12

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4301CMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4301CMS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable hot swap operation, make sure to follow the recommended PCB layout, use a suitable hot swap controller, and add a TVS diode to protect the device from voltage spikes. Also, ensure that the power supply can handle the inrush current during hot swap.
  • The maximum operating temperature range for the LTC4301CMS8 is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced reliability and lifespan.
  • Yes, the LTC4301CMS8 can be used in a redundant power supply configuration. However, it's essential to ensure that the devices are properly synchronized and that the power supplies are properly isolated to prevent back-feeding.
  • To troubleshoot issues with the LTC4301CMS8, start by checking the power supply voltage, input voltage, and output voltage. Use an oscilloscope to check for voltage spikes, ringing, or oscillations. Also, check the PCB layout and ensure that it follows the recommended layout guidelines.
