LTC4301IDD#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters Supply Independent I2C Bus Buffer

Download LTC4301IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

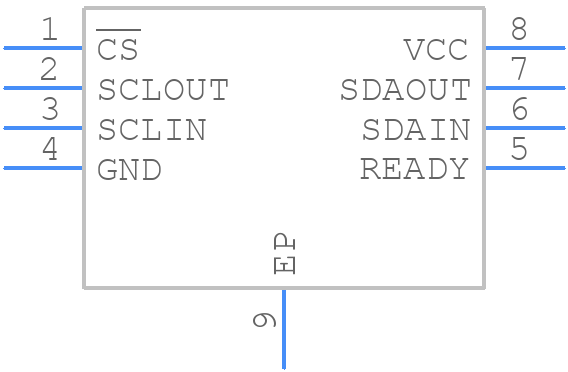

Symbol
LTC4301IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4301IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package-ren1
click to zoom
3D Models
LTC4301IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package-ren1
click to zoom

LTC4301IDD#PBF Details

  • Manufacturer Part Number:

    LTC4301IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4301IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4301 involves keeping the hot swap FETs close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane is recommended.
  • To ensure reliable hot swap operation, make sure to follow the recommended PCB layout, use a suitable hot swap FET, and ensure that the VIN pin is properly decoupled. Also, ensure that the system is designed to handle the inrush current during hot swap.
  • The maximum allowed voltage on the SCL and SDA pins of the LTC4301 is 5.5V, which is the maximum rating for the I2C bus. Exceeding this voltage can damage the IC.
  • Yes, the LTC4301 can operate with a supply voltage as low as 2.7V, but the hot swap FETs may not be fully enhanced at lower voltages. The IC's performance may be affected, and the hot swap functionality may not work correctly.
  • To troubleshoot issues with the LTC4301, use a logic analyzer or oscilloscope to monitor the I2C bus and the hot swap FETs' gate-source voltage. Check the PCB layout and ensure that the IC is properly decoupled. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4301IDD#PBF Overview

Use the download button to access the LTC4301IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
