LTC4301LIDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4301LIDD#PBF - IC, HOTSWAP 2WIRE BUS BUFFR, 8DFN

Download LTC4301LIDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

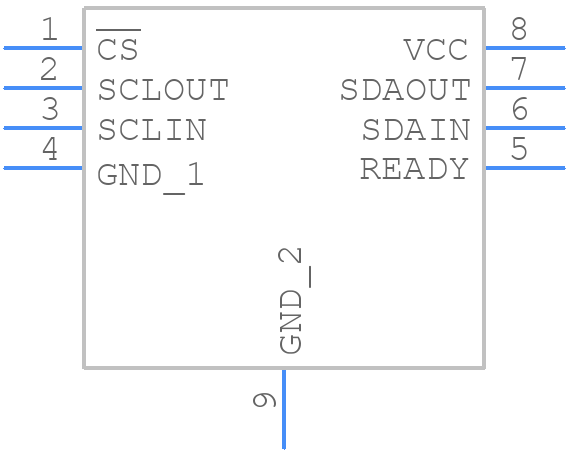

LTC4301LIDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4301LIDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package-ren1
click to zoom
3D Models
LTC4301LIDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package-ren1
click to zoom

LTC4301LIDD#PBF Details

  • Manufacturer Part Number:

    LTC4301LIDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4301LIDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4301LIDD#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC4301LIDD#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device from a low-noise, low-impedance source. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable.
  • The LTC4301LIDD#PBF can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the LTC4301LIDD#PBF, use an oscilloscope to check the signal integrity, verify the power supply and input signals, and check for any PCB layout issues. Also, consult the datasheet and application notes for troubleshooting guidelines.
  • The LTC4301LIDD#PBF has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Use thermal vias and a heat sink if necessary, and ensure good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4301LIDD#PBF Overview

Use the download button to access the LTC4301LIDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
