LTC4303IDD#PBF - Analog Devices

Description: Interface - Signal Buffers, Repeaters I2C Bus Buffer with Stuck Bus Recovery

Download LTC4303IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

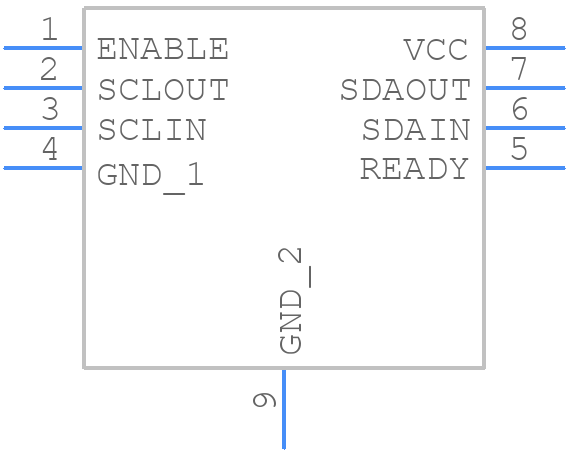

Symbol
LTC4303IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4303IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package-ren1
click to zoom
3D Models
LTC4303IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package-ren1
click to zoom

LTC4303IDD#PBF Details

  • Manufacturer Part Number:

    LTC4303IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4303IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4303IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure reliable operation.
  • The LTC4303IDD#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise power supply and to sequence the power-on in the following order: VCC, then VIO. The device can operate with a wide range of power supplies, but it's recommended to use a high-quality power supply with low noise and ripple.
  • The LTC4303IDD#PBF has a maximum junction temperature of 150°C. To ensure reliable operation at high temperatures, it's recommended to provide good airflow around the device, use a heat sink if necessary, and avoid overheating the device. Additionally, it's recommended to follow the thermal design guidelines provided in the datasheet to ensure reliable operation.
  • To troubleshoot issues with the LTC4303IDD#PBF, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Check the power supply and signal connections, and verify that the device is properly configured. Use a logic analyzer or oscilloscope to debug the device's behavior and identify any issues. If the problem persists, contact Analog Devices Inc. support for further assistance.
  • The LTC4303IDD#PBF has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. To prevent latch-up, ensure that the device is powered up and down slowly, and avoid applying voltage to the I/O pins before powering up the device. Additionally, use a latch-up prevention circuit if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4303IDD#PBF Overview

Use the download button to access the LTC4303IDD#PBF schematic symbol, PCB footprint, and 3D model.
