LTC4312CMS#PBF - Analog Devices

Description: Multiplexer Switch ICs Pin-selectable 2-Channel I2C Mux with Bus Buffer

Download LTC4312CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

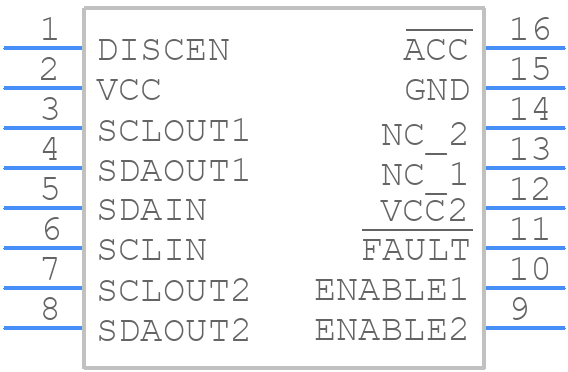

Symbol
LTC4312CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4312CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 LEAD MSOP+++-+
click to zoom
3D Models
LTC4312CMS#PBF - Analog Devices - 3D model - Small Outline Packages - 16 LEAD MSOP+++-+
click to zoom

LTC4312CMS#PBF Details

  • Manufacturer Part Number:

    LTC4312CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4312CMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4312 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a low-ESR capacitor at the output and to minimize the loop area of the input and output traces to reduce EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, check that the output capacitor has a low ESR and is properly sized for the output current. Also, ensure that the input voltage is within the recommended range and that the device is not operated in a noisy environment.
  • The maximum output current of the LTC4312 is 2A, but this can be limited by the thermal performance of the package and the PCB. It's recommended to check the thermal calculations and ensure that the device is operated within the recommended temperature range.
  • While the LTC4312 can deliver up to 2A of output current, it's not recommended for high-current loads due to its limited thermal performance. For high-current loads, it's recommended to use a more robust voltage regulator or a switching regulator with a higher current rating.
  • The output voltage of the LTC4312 can be programmed using an external resistor divider network connected to the VOUT pin. The datasheet provides a formula to calculate the required resistor values for a given output voltage.
