LTC4313CDD-1#PBF - Analog Devices

Description: IC ACCELERATOR I2C HOTSWAP 8DFN

Download LTC4313CDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

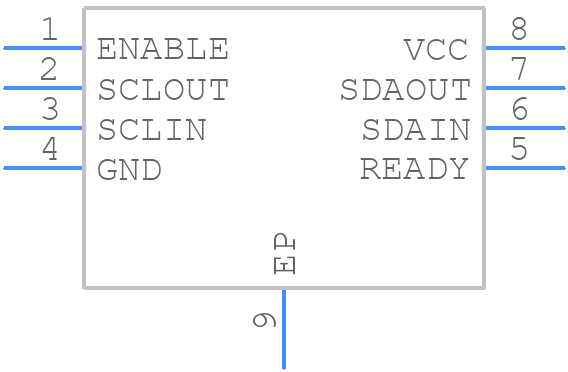

Symbol
LTC4313CDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4313CDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC4313CDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC4313CDD-1#PBF Details

  • Manufacturer Part Number:

    LTC4313CDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4313CDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4313CDD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure proper power-up and initialization, apply a clean, regulated input voltage to the VIN pin, and ensure the EN pin is high before applying the input voltage. Also, ensure the input and output capacitors are properly sized and placed.
  • The LTC4313CDD-1#PBF has a maximum junction temperature of 125°C. Ensure good airflow, use a heat sink if necessary, and avoid high ambient temperatures to prevent overheating.
  • To troubleshoot issues, check the input voltage, output voltage, and enable pin voltage. Verify the PCB layout and component placement. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance.
  • To minimize EMI and EMC issues, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input and output lines. Ensure the device is properly decoupled and follow good PCB design practices.
