LTC4314CGN#PBF - Analog Devices

Description: Multiplexer Switch ICs Pin-selectable 4-Channel I2C Mux with Bus Buffer

Download LTC4314CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

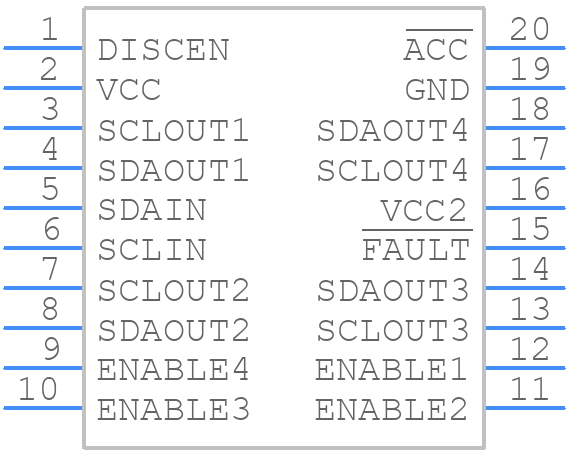

Symbol
LTC4314CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4314CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic SSOP (Narrow .150 Inch)*-*-
click to zoom
3D Models
LTC4314CGN#PBF - Analog Devices - 3D model - Small Outline Packages - 20-Lead Plastic SSOP (Narrow .150 Inch)*-*-
click to zoom

LTC4314CGN#PBF Details

  • Manufacturer Part Number:

    LTC4314CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1641 (GN20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.64 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.899 mm

LTC4314CGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4314CGN involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out high-frequency noise.
  • The maximum input voltage for the LTC4314CGN is 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the IC.
  • The LTC4314CGN is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the IC's performance and consider using a heat sink or thermal management system in high-temperature applications.
  • To troubleshoot issues with the LTC4314CGN, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for noise and oscillations, and verify that the PCB layout and component values match the recommended design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4314CGN#PBF Overview

Use the download button to access the LTC4314CGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
