LTC4317CDHC#TRPBF - Analog Devices

Description: Dual I2C/SMBus Address Translator –0.3V to 6V –0.3V to VCC + 0.3V 50mA ,–40°C to 85°C

Download LTC4317CDHC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

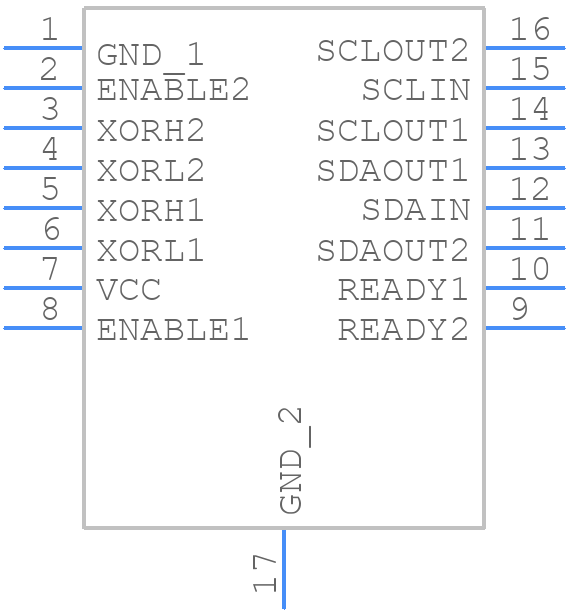

Symbol
LTC4317CDHC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4317CDHC#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm)
click to zoom
3D Models
LTC4317CDHC#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm)
click to zoom

LTC4317CDHC#TRPBF Details

  • Manufacturer Part Number:

    LTC4317CDHC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 3 MM, LEAD FREE, PLASTIC, MO-229WJED-1, DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4317CDHC#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4317CDHC involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 1uF input capacitance and 2.2uF output capacitance is recommended. Also, avoid using capacitors with high ESL (Equivalent Series Inductance).
  • The maximum input voltage that the LTC4317CDHC can handle is 5.5V. Exceeding this voltage may damage the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The LTC4317CDHC is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
  • To troubleshoot issues with the LTC4317CDHC, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output capacitors are of the correct value and type. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4317CDHC#TRPBF Overview

Use the download button to access the LTC4317CDHC#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Other Interface ICs
