LTC4353CMS#TRPBF - Analog Devices

Description: Power Management Specialized - PMIC Dual Low Voltage Ideal Diode Controller

Download LTC4353CMS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

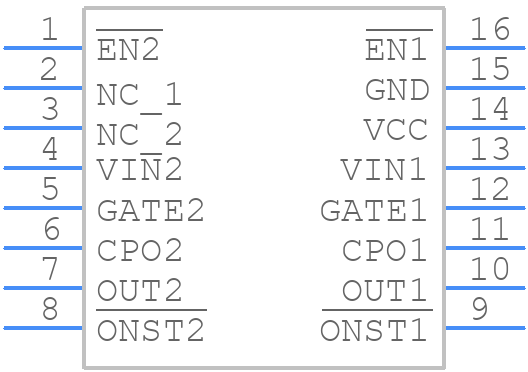

LTC4353CMS#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4353CMS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom
3D Models
LTC4353CMS#TRPBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom

LTC4353CMS#TRPBF Details

  • Manufacturer Part Number:

    LTC4353CMS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4353CMS#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4353CMS#TRPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including keeping the device away from heat sources, using thermal vias, and providing adequate copper area for heat dissipation.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, checking for proper power-up and configuration, and verifying that the device is operating within its specified parameters. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • Yes, the LTC4353CMS#TRPBF is designed for high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Analog Devices Inc. for specific requirements and certifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4353CMS#TRPBF Overview

Use the download button to access the LTC4353CMS#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
