LTC4358IFE#TRPBF - Analog Devices

Description: OR Controller N-Channel Single-OUT 0.04Ohm Automotive 16-Pin TSSOP EP T/R

Download LTC4358IFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

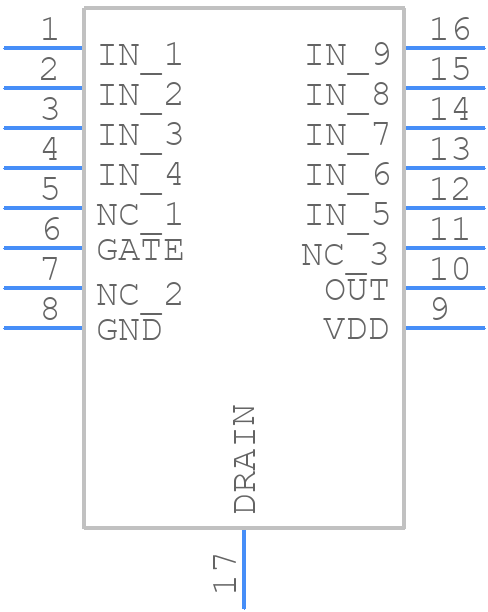

LTC4358IFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4358IFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm
click to zoom
3D Models
LTC4358IFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm
click to zoom

LTC4358IFE#TRPBF Details

  • Manufacturer Part Number:

    LTC4358IFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BC)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    26.5 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC4358IFE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4358IFE is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, including setting the correct voltage on the VCC pin and configuring the EN pin.
  • For optimal performance, follow the recommended PCB layout and design guidelines outlined in the datasheet, including keeping the input and output traces short and separate, and using a solid ground plane.
  • To troubleshoot issues with the LTC4358IFE, refer to the troubleshooting section in the datasheet, and check for common issues such as incorrect power-up sequence, incorrect configuration, or PCB layout issues. Also, use oscilloscopes and other diagnostic tools to identify and isolate the problem.
  • Yes, the LTC4358IFE is designed for high-reliability and safety-critical applications, and meets various industry standards such as AEC-Q100 and IEC 61508. However, it is essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
