LTC4364CMS-1#PBF - Analog Devices

Description: Hot Swap Controller 1-CH 80V N-Channel Positive High Voltage Automotive 16-Pin MSOP

Download LTC4364CMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

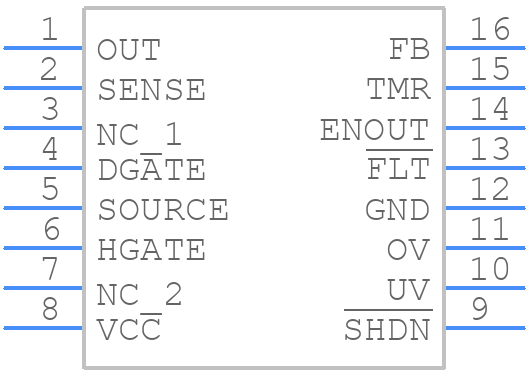

Symbol
LTC4364CMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4364CMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 R
click to zoom
3D Models
LTC4364CMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP (Reference LTC DWG # 05-08-1669 R
click to zoom

LTC4364CMS-1#PBF Details

  • Manufacturer Part Number:

    LTC4364CMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    VOUT RESET THRESHOLD VOLTAGE IS 2.2 VOLT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4364CMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4364CMS-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise and interference.
  • The selection of input and output capacitors for the LTC4364CMS-1#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the specific requirements of the system.
  • The LTC4364CMS-1#PBF has an operating temperature range of -40°C to 125°C. However, the device can be operated at a junction temperature of up to 150°C for short periods of time. It's recommended to ensure that the device is operated within the specified temperature range to ensure reliable operation and to prevent damage to the device.
  • To troubleshoot issues with the LTC4364CMS-1#PBF, it's recommended to first check the input and output voltage levels using an oscilloscope or a multimeter. Check for any signs of overheating, such as excessive temperature or burning smells. Also, check the PCB layout and ensure that it meets the recommended layout guidelines. If the issue persists, it may be necessary to consult the datasheet or contact Analog Devices Inc. for further assistance.
  • Yes, the LTC4364CMS-1#PBF is suitable for use in high-reliability applications, such as aerospace or automotive systems. The device is designed to meet the requirements of these applications, including high temperature operation, low noise, and high reliability. However, it's recommended to consult the datasheet and to perform thorough testing and validation to ensure that the device meets the specific requirements of the application.
