LTC4364HDE-2#PBF footprint, schematic symbol and 3D model by Analog Devices

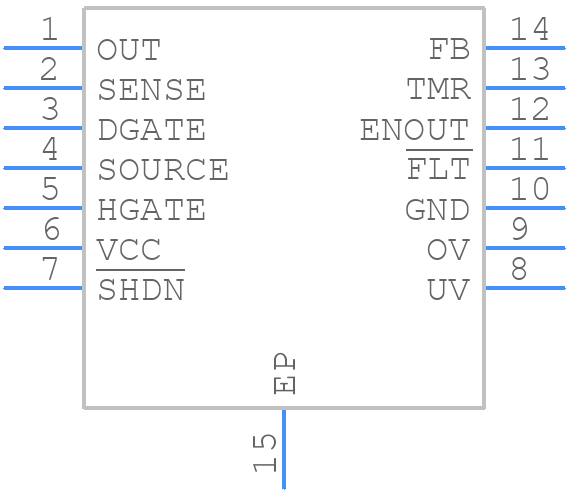

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC4364HDE-2#PBF
Part Number LTC4364HDE-2#PBF
Manufacturer Analog Devices
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 14-Lead, 4 mm × 3 mm, Plastic DFN (05-08-1708)-
Released Date Aug 12, 2020
Last Modified Date Sep 4, 2024 11:16 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC4364HDE-2#PBF Details

Manufacturer Part Number:
LTC4364HDE-2#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-14
Pin Count:
14
Manufacturer Package Code:
05-08-1708
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Additional Feature:
VOUT RESET THRESHOLD VOLTAGE IS 2.2 VOLT
Adjustable Threshold:
NO
Analog IC - Other Type:
INPUT FAULT PROTECTION CONTROLLER
JESD-30 Code:
R-PDSO-N14
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC14,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.75 mA
Supply Voltage-Max (Vsup):
80 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.2V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LTC4364HDE-2#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC4364HDE-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A minimum capacitance of 10uF is recommended for both input and output capacitors.
The LTC4364HDE-2#PBF is rated for an ambient temperature range of -40°C to 125°C. However, the device may not function correctly if the junction temperature exceeds 150°C.
Yes, the LTC4364HDE-2#PBF is a high-reliability device that meets the requirements of various industries such as automotive, industrial, and medical. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
To troubleshoot issues with the LTC4364HDE-2#PBF, start by checking the input and output voltages, and the voltage on the EN pin. Verify that the device is properly powered and that the input and output capacitors are properly connected. Use an oscilloscope to check for any oscillations or noise on the output.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LTC4364HDE-2#PBF Overview

Use the download button to access the LTC4364HDE-2#PBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
