Part Image

LTC4364HMS-1#PBF - Analog Devices

Description: Hot Swap Controller 1-CH 80V N-Channel Positive High Voltage Automotive 16-Pin MSOP

Download LTC4364HMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

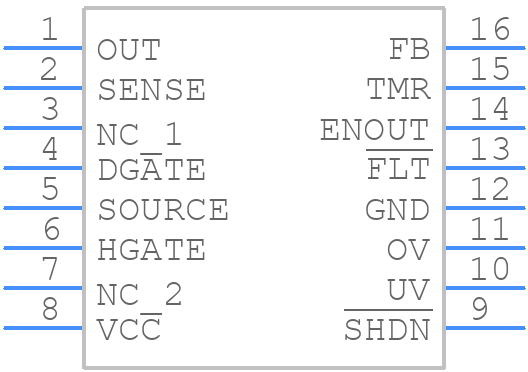

Symbol
LTC4364HMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4364HMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS PACKAGE 16-LEAD PLASTIC MSOP_1
click to zoom
3D Models
LTC4364HMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS PACKAGE 16-LEAD PLASTIC MSOP_1
click to zoom

LTC4364HMS-1#PBF Details

  • Manufacturer Part Number:

    LTC4364HMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    VOUT RESET THRESHOLD VOLTAGE IS 2.2 VOLT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4364HMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4364HMS-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose input and output capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The maximum input voltage that the LTC4364HMS-1#PBF can handle is 80V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 60V to ensure reliable operation.
  • The LTC4364HMS-1#PBF has a built-in overvoltage protection feature that can be enabled by connecting the OV pin to a voltage divider network. The OV pin threshold is 1.24V, and the device will shut down if the input voltage exceeds the set threshold.
  • The EN (Enable) pin is used to turn the device on or off. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. The EN pin can be connected to a logic signal or a switch to control the device's operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4364HMS-1#PBF Overview

Use the download button to access the LTC4364HMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
