A good PCB layout is crucial for the LTC4364HMS-1#WPBF. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, but it is recommended to consult with a capacitor manufacturer for specific recommendations.
The LTC4364HMS-1#WPBF has an operating temperature range of -40°C to 125°C. However, the device may not operate within specifications at the extreme ends of this range. It is recommended to consult the datasheet for specific temperature-related specifications and to consider derating the device for high-temperature applications.
Troubleshooting issues with the LTC4364HMS-1#WPBF requires a systematic approach. First, verify that the device is properly powered and that the input and output voltages are within specifications. Check for proper PCB layout and component selection. Use an oscilloscope to measure the input and output waveforms and to check for any signs of oscillation or instability. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the LTC4364HMS-1#WPBF is suitable for high-reliability applications. The device is built with high-reliability materials and manufacturing processes, and it has undergone rigorous testing and qualification. However, it is recommended to consult with Analog Devices Inc for specific reliability data and to follow proper design and manufacturing practices to ensure the highest level of reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4364HMS-1#WPBF Overview

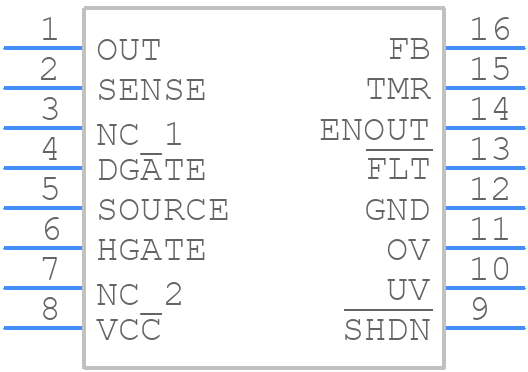

Use the download button to access the LTC4364HMS-1#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43,
or try a keyword search, such as Power Management Circuits
