A good PCB layout for the LTC4364 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the IC and keep it isolated from the digital ground plane.
The selection of input and output capacitors for the LTC4364 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
The LTC4364 has an operating temperature range of -40°C to 125°C. However, the device can be operated at a junction temperature of up to 150°C for short periods of time. It's recommended to ensure that the device is operated within the specified temperature range to ensure reliable operation and to prevent damage to the device.
To troubleshoot issues with the LTC4364, start by checking the input and output voltages and currents to ensure they are within the specified ranges. Check the fault pins (OV and UV) to determine if the device is detecting an overvoltage or undervoltage condition. Check the input and output capacitors for any signs of damage or wear. Also, check the PCB layout to ensure that it is correct and that there are no issues with the ground plane or decoupling.
Yes, the LTC4364 is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it has been tested to ensure that it meets the requirements of these applications. However, it's recommended to consult with Analog Devices Inc. and to perform additional testing and validation to ensure that the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC4364IMS-1#TRPBF Overview

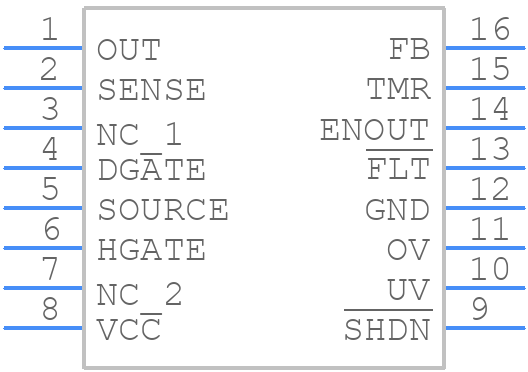

Use the download button to access the LTC4364IMS-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
