LTC4365CDDB#TRMPBF - Analog Devices

Description: Surge Suppressors UV, OV and Reverse Supply Protection Controller with 36ms Fault Recovery

Download LTC4365CDDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

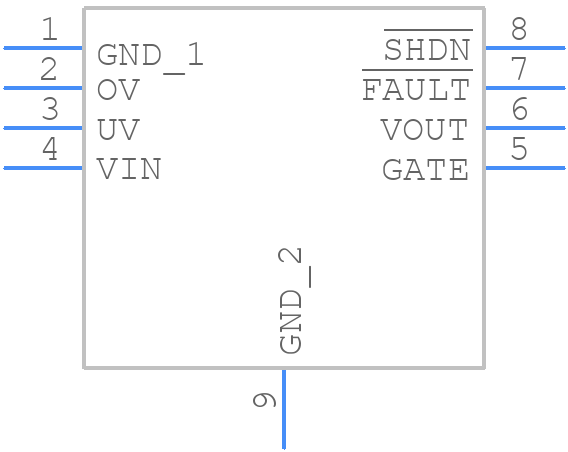

LTC4365CDDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4365CDDB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom
3D Models
LTC4365CDDB#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm)
click to zoom

LTC4365CDDB#TRMPBF Details

  • Manufacturer Part Number:

    LTC4365CDDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    34 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.5;0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC4365CDDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4365CDDB involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The high-current paths should be kept short and wide to minimize resistance and inductance. A solid ground plane is also recommended to reduce noise and improve thermal performance.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitor values should be chosen based on the desired output ripple and transient response.
  • The maximum ambient temperature for the LTC4365CDDB is 85°C. However, the device can operate at higher temperatures with derating. The maximum junction temperature is 150°C.
  • The LTC4365CDDB has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by connecting a resistor divider from the output voltage to the OVP pin. When the output voltage exceeds the OVP threshold, the device will shut down to protect the load.
  • Yes, the LTC4365CDDB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
