LTC4366HDDB-1#TRMPBF - Analog Devices

Description: High Voltage Surge Stopper

Download LTC4366HDDB-1#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

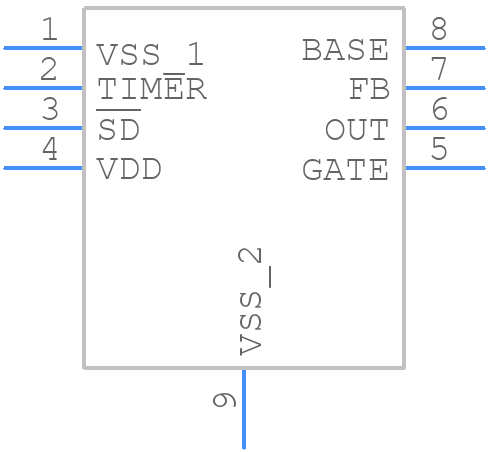

Symbol
LTC4366HDDB-1#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4366HDDB-1#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC4366HDDB-1#TRMPBF*
click to zoom
3D Models
LTC4366HDDB-1#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - LTC4366HDDB-1#TRMPBF*
click to zoom

LTC4366HDDB-1#TRMPBF Details

  • Manufacturer Part Number:

    LTC4366HDDB-1#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    12.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC4366HDDB-1#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4366 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or film capacitor with a value of at least 10uF. The capacitor selection should be based on the specific application requirements, such as ripple current, voltage rating, and ESR.
  • The LTC4366 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be derated for high-temperature operation to ensure reliable performance.
  • The LTC4366 has a built-in OVP feature that can be enabled by connecting the OV pin to a voltage divider that sets the OVP threshold. The OVP threshold should be set to a voltage higher than the maximum input voltage to ensure reliable operation.
  • The recommended input voltage range for the LTC4366 is 2.9V to 5.5V, but the device can operate with input voltages as low as 2.5V and as high as 6V. However, the device's performance and reliability may be affected at these extreme voltage ranges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4366HDDB-1#TRMPBF Overview

Use the download button to access the LTC4366HDDB-1#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
