LTC4366HDDB-2#TRPBF - Analog Devices

Description: High Voltage Surge Stopper

Download LTC4366HDDB-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

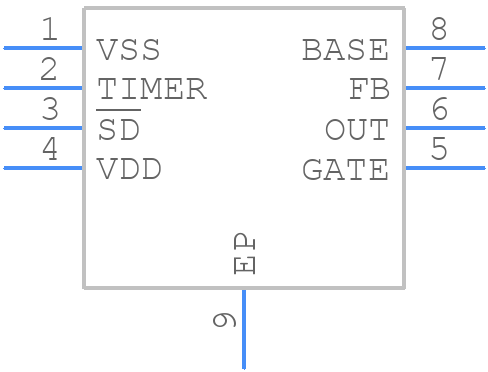

LTC4366HDDB-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4366HDDB-2#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package
click to zoom
3D Models
LTC4366HDDB-2#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package
click to zoom

LTC4366HDDB-2#TRPBF Details

  • Manufacturer Part Number:

    LTC4366HDDB-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    12.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC4366HDDB-2#TRPBF Frequently Asked Questions (FAQs)

  • The LTC4366 can handle surge currents up to 100A for 1ms, but it's recommended to limit the surge current to 50A for 1ms to ensure reliable operation.
  • The sense resistor value depends on the maximum current you want to measure and the desired accuracy. A good starting point is to use the formula Rsense = 0.05V / Imax, where Imax is the maximum current you want to measure. You can then adjust the value based on your specific requirements.
  • The EN (enable) pin is used to turn the device on and off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to control the power consumption of the device or to implement a shutdown function in your system.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source between 2.9V and 5.5V, and connect the GND pin to a solid ground plane. Also, ensure that the input voltage to the VIN pin is within the recommended range of 2.9V to 5.5V.
  • The typical response time of the LTC4366 to an overcurrent condition is around 1μs. However, this time can vary depending on the sense resistor value, the input voltage, and the output capacitance.
