LTC4367HDD-1#PBF - Analog Devices

Description: 100V Overvoltage, Undervoltage and Reverse Supply Protection Controller

Download LTC4367HDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

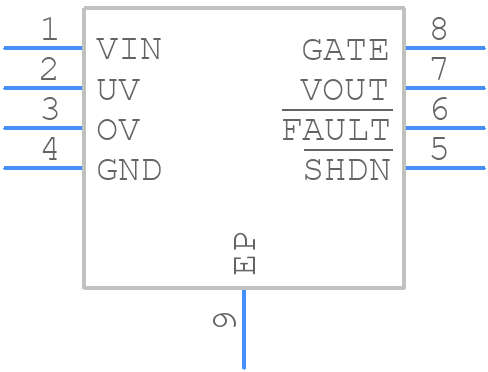

LTC4367HDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4367HDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom
3D Models
LTC4367HDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom

LTC4367HDD-1#PBF Details

  • Manufacturer Part Number:

    LTC4367HDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    0.5V; 0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4367HDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4367HDD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF. The capacitors should be placed as close to the device as possible to minimize parasitic inductance.
  • The maximum input voltage that the LTC4367HDD-1#PBF can handle is 80V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
  • The LTC4367HDD-1#PBF has a built-in overvoltage protection feature that can be enabled by connecting the OV pin to a voltage divider that sets the overvoltage threshold. The device will shut down if the input voltage exceeds the set threshold.
  • The maximum current that the LTC4367HDD-1#PBF can handle is 1.5A, but it's recommended to operate the device within the specified current range of 0.1A to 1A for optimal performance and reliability.
