LTC4368HDD-1#PBF - Analog Devices

Description: Protection Circuit Automotive 10-Pin DFN EP Tube

Download LTC4368HDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

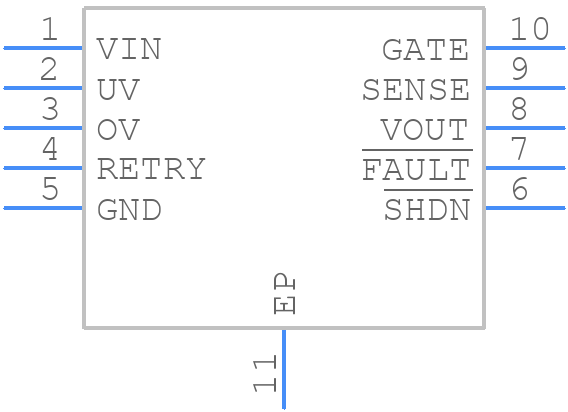

LTC4368HDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4368HDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC4368HDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC4368HDD-1#PBF Details

  • Manufacturer Part Number:

    LTC4368HDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4368HDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4368HDD-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. Ensure the capacitors have a low ESR (Equivalent Series Resistance) to minimize power loss.
  • The LTC4368HDD-1#PBF has an operating temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. A good thermal design should ensure the junction temperature stays below 125°C.
  • The LTC4368HDD-1#PBF has a built-in overvoltage protection (OVP) feature. To implement OVP, connect the OVP pin to a voltage divider that sets the OVP threshold. The OVP threshold should be set to a voltage slightly higher than the maximum input voltage. When the input voltage exceeds the OVP threshold, the IC will shut down to protect the system.
