LTC4370IDE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4370IDE#PBF - Special Function IC, Current Sharing Controller, 3 V to 18 V in, DFN-16

Download LTC4370IDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

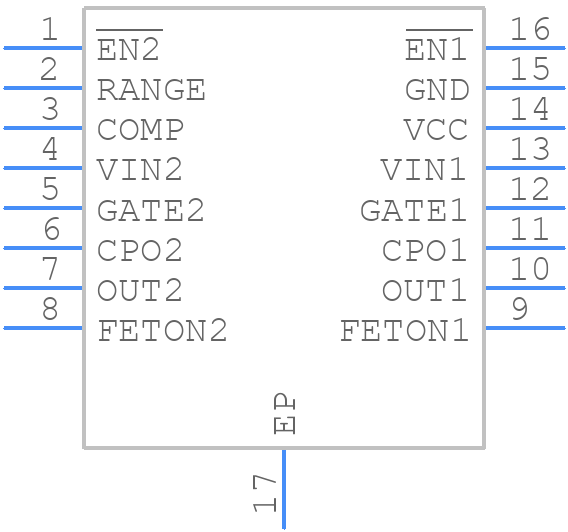

LTC4370IDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4370IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC4370IDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC4370IDE#PBF Details

  • Manufacturer Part Number:

    LTC4370IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, MO-229WGED-3, DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4370IDE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. For the output capacitor, select a capacitor with a low ESR and a capacitance value of at least 10uF.
  • The maximum ambient temperature range for the LTC4370IDE#PBF is -40°C to 125°C. However, the device's performance may degrade at temperatures above 85°C.
  • Yes, the LTC4370IDE#PBF is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in an IATF 16949 certified facility.
  • Check the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.
