LTC4373HMS8#PBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4373HMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

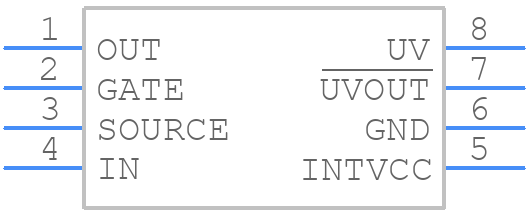

Symbol
LTC4373HMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4373HMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-2
click to zoom
3D Models
LTC4373HMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP-2
click to zoom

LTC4373HMS8#PBF Details

  • Manufacturer Part Number:

    LTC4373HMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.191V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4373HMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4373HMS8 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The choice of input and output capacitors for the LTC4373HMS8 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use 10uF to 22uF capacitors with an ESR of less than 100mΩ.
  • The LTC4373HMS8 has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LTC4373HMS8 has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values. Additionally, external OVP circuits can be implemented using zener diodes, resistors, and transistors.
  • Yes, the LTC4373HMS8 is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100 and has a high MTBF (mean time between failures) rating. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specifications.
