LTC4376IDHD#PBF - Analog Devices

Description: Power Switch ICs - Power Distribution 7A Ideal Diode with Reverse Input Protec

Download LTC4376IDHD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

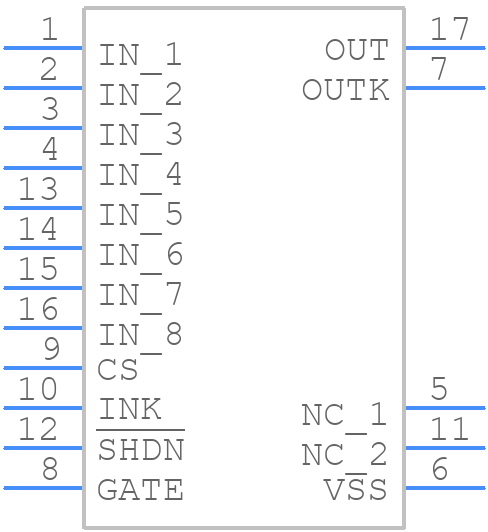

LTC4376IDHD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4376IDHD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHD Package
click to zoom
3D Models
LTC4376IDHD#PBF - Analog Devices - 3D model - Small Outline No-lead - DHD Package
click to zoom

LTC4376IDHD#PBF Details

  • Manufacturer Part Number:

    LTC4376IDHD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1707

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-10-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

LTC4376IDHD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the switching node.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10 μH). Consider the inductor's physical size, core material, and operating frequency when making your selection.
  • The LTC4376IDHD#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's specifications accordingly.
  • Yes, the LTC4376IDHD#PBF is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, ensure that your design meets the specific requirements of your application, including environmental and reliability standards.
  • Use an oscilloscope to monitor the input and output voltages, as well as the switching node. Check for proper PCB layout, component selection, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
