LTC4380HMS-4#WTRPBF - Analog Devices

Description: Board Mount Surge Protectors L Q C Surge Stopper

Download LTC4380HMS-4#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

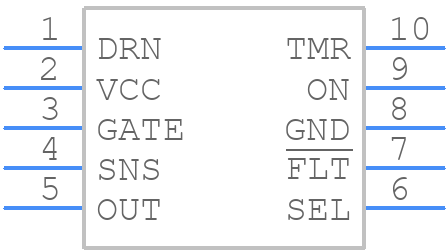

Symbol
LTC4380HMS-4#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4380HMS-4#WTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)..
click to zoom
3D Models
LTC4380HMS-4#WTRPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)..
click to zoom

LTC4380HMS-4#WTRPBF Details

  • Manufacturer Part Number:

    LTC4380HMS-4#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Latch Off ;SHDN

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4380HMS-4#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC4380HMS-4#WTRPBF. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the power source.
  • To ensure accurate overcurrent protection, it's essential to choose the correct sense resistor value and to ensure that the sense lines are properly connected and routed. Additionally, the device's overcurrent protection threshold should be set according to the application's requirements.
  • The LTC4380HMS-4#WTRPBF has an operating temperature range of -40°C to 125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation to avoid thermal shutdown.
  • The LTC4380HMS-4#WTRPBF is a surface-mount device, and as such, it may be susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, it's recommended to use a robust PCB design, secure the device with a suitable adhesive, and consider using a vibration-dampening material.
  • To troubleshoot issues with the device's overvoltage protection, check the input voltage levels, ensure that the OVP threshold is set correctly, and verify that the device is properly connected and powered. Additionally, check for any signs of damage or overheating.
