LTC4416IMS#TRPBF - Analog Devices

Description: Power Management Specialized - PMIC 36V, L Loss 2x PwrPath Cntrs for Lrg PFE

Download LTC4416IMS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

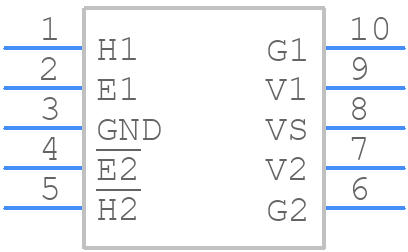

Symbol
LTC4416IMS#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4416IMS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2025-1.55
click to zoom
3D Models
LTC4416IMS#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP_2025-1.55
click to zoom

LTC4416IMS#TRPBF Details

  • Manufacturer Part Number:

    LTC4416IMS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4416IMS#TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC4416IMS#TRPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity and heat dissipation through the use of thermal vias, heat sinks, and proper airflow.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, and then perform a thorough analysis of the system design, PCB layout, and component selection. Use debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
  • Yes, the LTC4416IMS#TRPBF is designed to meet the requirements of high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Analog Devices Inc. for specific guidance and support.
