LTC4419IMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC4419IMSE#PBF - POWERPATH PRIORITIZER, 18V, MSOP-12

Download LTC4419IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

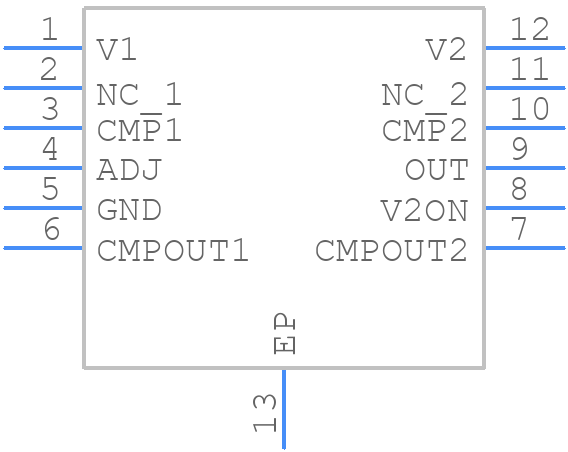

LTC4419IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4419IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE DWG # 05-08-1666 Rev F
click to zoom
3D Models
LTC4419IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE DWG # 05-08-1666 Rev F
click to zoom

LTC4419IMSE#PBF Details

  • Manufacturer Part Number:

    LTC4419IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4419IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4419IMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are properly selected and placed close to the IC. Also, ensure that the PCB layout is well-designed, and the input and output voltage rails are well-bypassed. Additionally, follow the recommended component values and layout guidelines in the datasheet.
  • The maximum ambient temperature range for the LTC4419IMSE is -40°C to 125°C. However, the junction temperature (TJ) should not exceed 150°C.
  • Yes, the LTC4419IMSE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for high-reliability industrial and medical applications.
  • To troubleshoot issues with the LTC4419IMSE, start by checking the input and output voltage levels, ensuring they are within the recommended range. Check the PCB layout for any errors or omissions, and verify that the component values are correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4419IMSE#PBF Overview

Use the download button to access the LTC4419IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC44, or try a keyword search, such as Power Management Circuits
