LTC4440AHMS8E-5#TRPBF - Analog Devices

Description: Driver 1.1A 1-OUT High Side Full Brdg Non-Inv Automotive 8-Pin MSOP EP T/R

Download LTC4440AHMS8E-5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

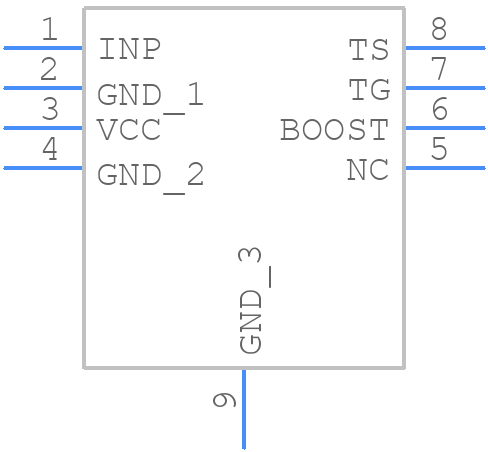

LTC4440AHMS8E-5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4440AHMS8E-5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LTC4440AHMS8E-5#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LTC4440AHMS8E-5#TRPBF Details

  • Manufacturer Part Number:

    LTC4440AHMS8E-5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1.1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.325 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    15 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.08 µs

  • Turn-on Time:

    0.08 µs

  • Width:

    3 mm

LTC4440AHMS8E-5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4440AHMS8E-5#TRPBF involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the sense pins to minimize noise.
  • To ensure the LTC4440AHMS8E-5#TRPBF operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal modeling and simulation tools to estimate the junction temperature, and ensure the device is properly heatsinked. Also, follow the recommended layout and thermal management guidelines in the datasheet.
  • Not using the recommended input capacitor value and type can lead to instability, oscillations, and reduced performance. The input capacitor helps to filter out noise and provide a stable input voltage. Using a capacitor with a different value or type can affect the device's stability, efficiency, and overall performance.
  • To troubleshoot issues with the LTC4440AHMS8E-5#TRPBF, start by reviewing the datasheet and application notes to ensure proper device operation and layout. Use oscilloscopes and other measurement tools to monitor the device's input and output voltages, currents, and temperatures. Check for noise, oscillations, and other anomalies that may indicate a problem. Consult with Analog Devices' support resources and application engineers for further assistance.
  • Operating the LTC4440AHMS8E-5#TRPBF outside its recommended temperature range can affect its performance, reliability, and lifespan. The device may experience reduced efficiency, increased power losses, and decreased accuracy. In extreme cases, operating outside the recommended temperature range can lead to device failure or damage.
