LTC4440AIMS8E-5#PBF - Analog Devices

Description: Driver 1.1A 1-OUT High Side Full Brdg Non-Inv Automotive 8-Pin MSOP EP Tube

Download LTC4440AIMS8E-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

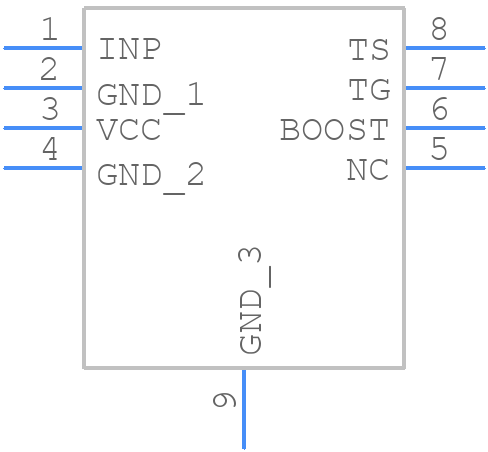

LTC4440AIMS8E-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4440AIMS8E-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC4440AIMS8E-5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC4440AIMS8E-5#PBF Details

  • Manufacturer Part Number:

    LTC4440AIMS8E-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    1.1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.325 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    15 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.08 µs

  • Turn-on Time:

    0.08 µs

  • Width:

    3 mm

LTC4440AIMS8E-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4440 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The LTC4440 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • The LTC4440 is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. For such applications, consider using a radiation-hardened or high-reliability version of the device, if available.
  • To troubleshoot issues with the LTC4440, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the recommended values. Use an oscilloscope to observe the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
