LTC4440IMS8E#PBF - Analog Devices

Description: Driver 2.4A 1-OUT High Side Full Brdg Inv 8-Pin MSOP EP Tube

Download LTC4440IMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

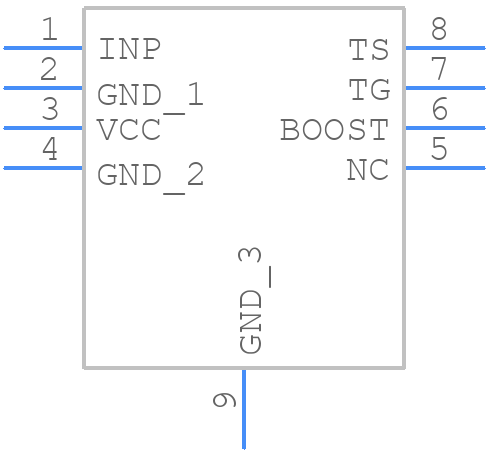

Symbol
LTC4440IMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4440IMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LTC4440IMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LTC4440IMS8E#PBF Details

  • Manufacturer Part Number:

    LTC4440IMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3 mm

LTC4440IMS8E#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4440 can be found in the application note AN137, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance.
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. The datasheet provides guidelines for component selection, and the ADI website offers a component selection tool to help with this process.
  • The LTC4440 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • Yes, the LTC4440 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
  • Troubleshooting issues with the LTC4440 typically involves checking the power supply, input and output voltages, and signal integrity. The datasheet and application notes provide guidance on troubleshooting common issues, and ADI's technical support team is available to assist with more complex problems.
